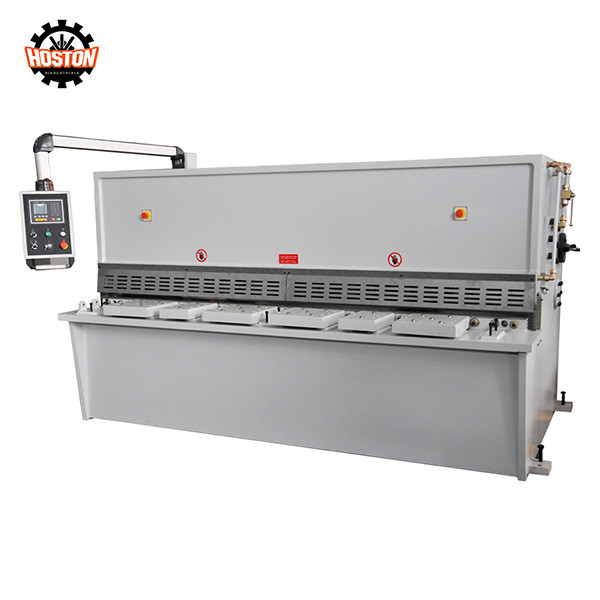

Hydraulic Universal Steel Iron Aluminum Shearing Machine Cutting Machine 8x2500mm

Name: Hydraulic Universal Steel Iron Aluminum Shearing Machine Cutting Machine 8x2500mm
Brand: Hoston
Price: 1 USD

Quality Hydraulic Universal Steel Iron Aluminum Shearing Machine Cutting Machine 8x2500mm for sale

Brand Name : Hoston

Model Number : HBS-8-2500

Payment Terms : L/C, T/T, D/A

Control System : CNC

Maximum width of cut : 2500mm

Maximum cutting thickness : 8mm

Strength of plate : 450N/mm

Shear angle : 1.5°

Stroke number : 14

Contact Now

Hydraulic Universal Steel Iron Aluminum Shearing Machine Cutting Machine 8x2500mm

hydraulic swing beam shearing machine is the sheet metal industry under the cutting tool, Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.

Model	Unit	4×2500	4×3200	4×4000	6×2500	6×3200	6×4000	8×2500	8×3200	8×4000	10×2500
Maximum cutting thickness	mm	4	4	4	6	6	6	8	8	8	10
Maximum width of cut	mm	2500	3200	4000	2500	3200	4000	2500	3200	4000	2500
Strength of plate	N/mm	450	450	450	450	450	450	450	450	450	450
Shear angle	°	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	2
Stroke number	min	22	19	17	18	15	13	14	12	10	11
Backgauge stroke	mm	550	550	550	950	550	550	550	550	550	550
Main motor power	KW	5.5	5.5	5.5	7.5	7.5	11	7.5	7.5	11	11
Overall dimension LWH	mm	3020×1490 ×1500	3720×1490 ×1550	4520×1700 ×1640	3030×1665 ×1620	3730×1665 ×1620	4530×1770 ×1700	3040×1665 ×1620	3740×1665 ×1620	4530×1770 ×1700	3050×1750 ×1700

CNC Controller

CNC Controller Estun E21S/E200PS

Backgauge control (One side positioning)
Control for general AC motors, frequency inventer(Retract function)
Inteligent positioning(One key backup/restore of parameters)
Double programmable digital output
Stock counter(mm/Inch)
Program memory of up to 40 programs up to steps per program(Chinese/English)

Confugurations

Sfety Fence Left and right protective guard guarentees operation safety	Overall Welding Intergal welding fornt workbench and machine body guarantees that there are no seam between front workbench vertical plate and bilateral vertical plates

HIWIN Ball Screw High precision backgauge is equipped with Taiwan HIWIN ball screw and polished rod.	Front Tables Roller ball is installed on the arm with ruler can reduce the abrasion and feeder the machine easily and accurately

Bosch Rexroch Valve Germany Bosch Rexroch integrated hydraulic valveblock, hydraulic trasmission with high reliability, integrated hydraulic system can effectively alleviated problems caused by leakage of hydraulic fluid.	Blade Clearance Adjust Adjust the cutting blade gap by motor according to thethickness of plate, which can get better cutting perfor-mance.

Premium Backgauge With high quality and precise bakgauge which is controller by servo motor	SCHNElDER Electrical components High aulity electric parts can perform well even the electricity is not stable and customers can easily get the replace ment anywhere in the world.

SUNNY Hydraulic Pump American world famous brand for hydraulic pump per-forms well and provides qreat power for the whole hydraulic system.	SIEMENS Motor German famous brand motor improves the lifespan of the machine and keeps the machione working in low noise environment.
